Multi Function Automatic Fiber Fusion Splicer X800

X-800 Fiber fusion splicer is with core to core alignment technology, it has flexible and stable performance when aligning fibers. It is with classic industrial design, user-friendly size and weight, easy operating GUI menu, convenient ARC automatic calibration function and high quality components. It is suitable for both indoor and outdoor fiber splicing projects

SKU: X-800

Product Description

Features

  • 1s boot up, 6s splicing, 20s heating
  • Real-time ARC calibration automatically
  • Automatic splicing and heating, supporting user-defined
  • Industrial quad-core CPU, big capacity Li-battery



Specifications



Applicable fiber

SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G.655)

Diameter of cladding

80 -150μm

Diameter of coating

160-900μm

Typical splice loss SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB
Return loss > 60dB
Fibe cleaved length 5-16mm ( coating diameter < 250um), 16mm (coating diameter:250-1000um)
Splicing program 40 groups
Operate mode Automatic/Manual
Auto-heating Available
Typical splicing time 6 seconds
Typical heating time 20 seconds
Fiber magnification 250X (X or Y view), 125X (X and Y view)
Display screen 4.3 inch color LCD monitor, touch screen
Records storage 4000 results
Loss evaluation Available
Tension test 1.8-2.2N
Interface GUI menu interface, easy for operation
Battery 5200mAh Li-battery, typical 250 cycles splicing and heating, support separating charging
Power supply Adapter, input: AC 100-240V(50/50HZ), output: 11-13.5V
Electrodes life More than 4000 ARC discharges, can be replaced conveniently
Ternimal USB2.0 port, for software upgrading and records exporting
Operating conditions Altituede: 0-5000m, Humidity: 0-95%, Temperature: -10℃~+50℃, Wind speed: Max 15m/s
Dimension 157mm(L) * 136mm(W) * 140mm(H) (including rubber armor)
Weight 2.10kg (including battery)

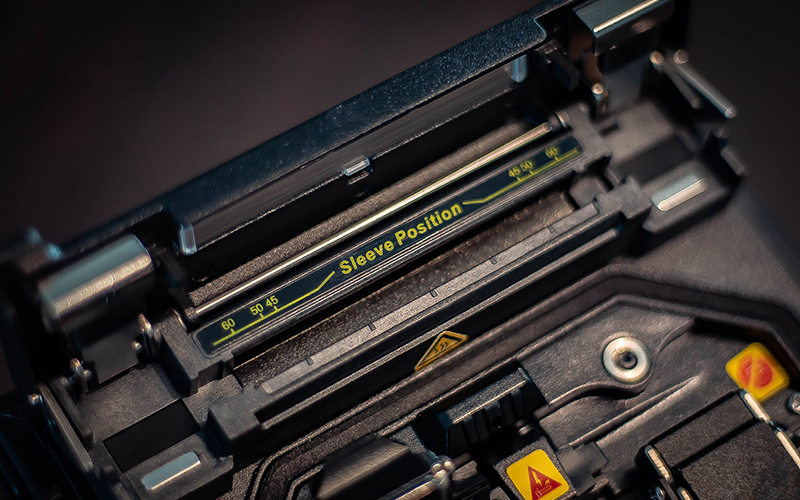

fiber fusion splicer heater



Standard  Accessories



NO. ITEM
1 Carrying box
2 Fiber cleaver
3 Fiber stripper
4 Drop cable stripper
5 Power cord
6 Adapter
7 Cooling tray
8 User manual (USB)
9 Spare electrodes
10 Cleaning tool kit
11

Strap
